Innomesh
Room Manager

Room Operations for Sight

Using Innomesh Ops, administrators can configure operations for Innomesh Sight rooms by mapping a single room level action to one or more device level Ops actions. Once configured, these room Ops actions appear in the room’s context menu on the Rooms page of the Innomesh Portal.

📝 Note
Room Operations for Sight requires Innomesh Ops.

Adding Room Operations

The setup process involves six steps.

  1. Open or create a Sight room.
  2. Open the options menu in the top left and select Room Operations Mapping.
  3. Click Add Mapping.
  4. Choose an operation from the dropdown or select a custom operation.
  5. Select target devices and assign functions for each device.
  6. Save by clicking Add and updating the room.

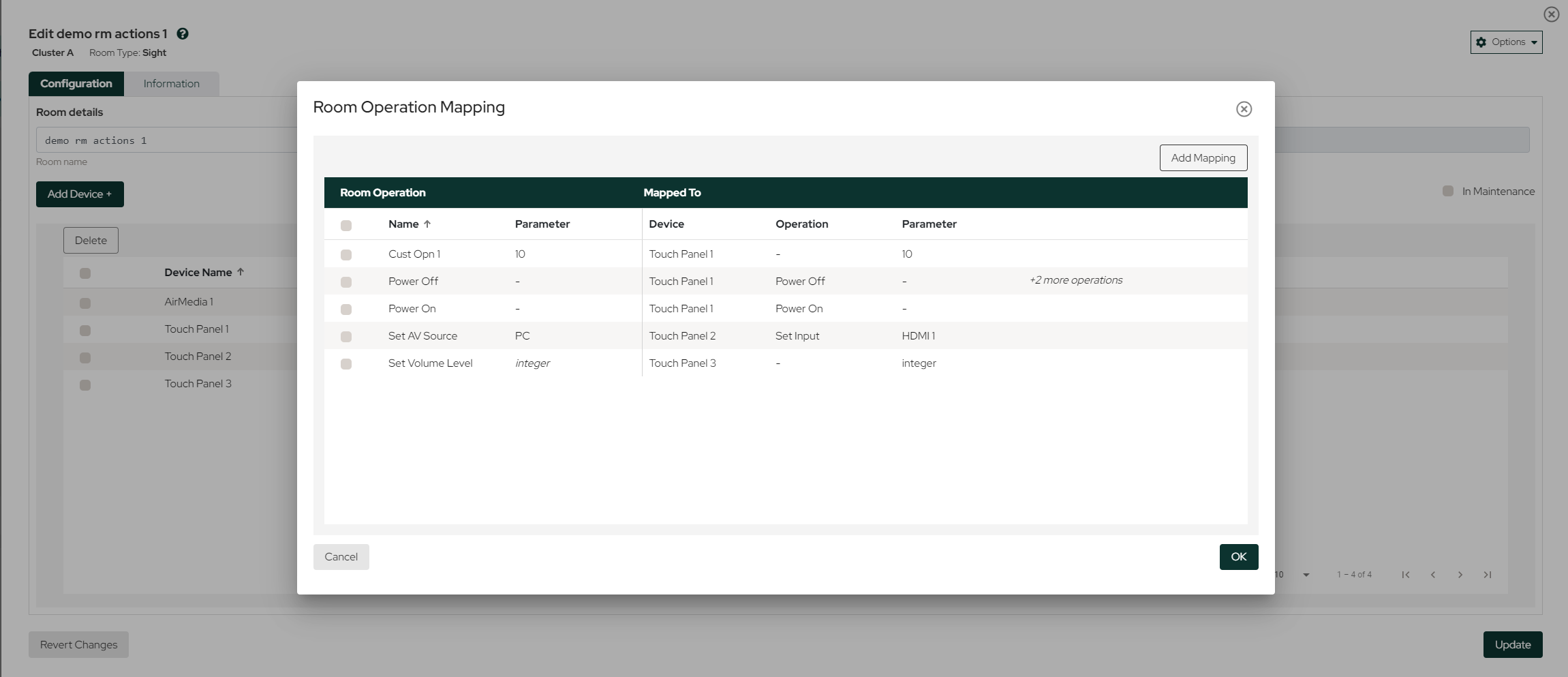

Room Operation Mapping modal in a Sight room editor, listing mapped operations such as Cust Opn 1, Power Off, Power On, Set AV Source, and Set Volume Level, each linked to specific devices and operations.

Executing Room Operations

To trigger these operations:

  1. Navigate to the Rooms section in Innomesh Portal.
  2. Locate your room.
  3. Access the context menu.
  4. Select Room Operation.

This action simultaneously executes all mapped device operations.

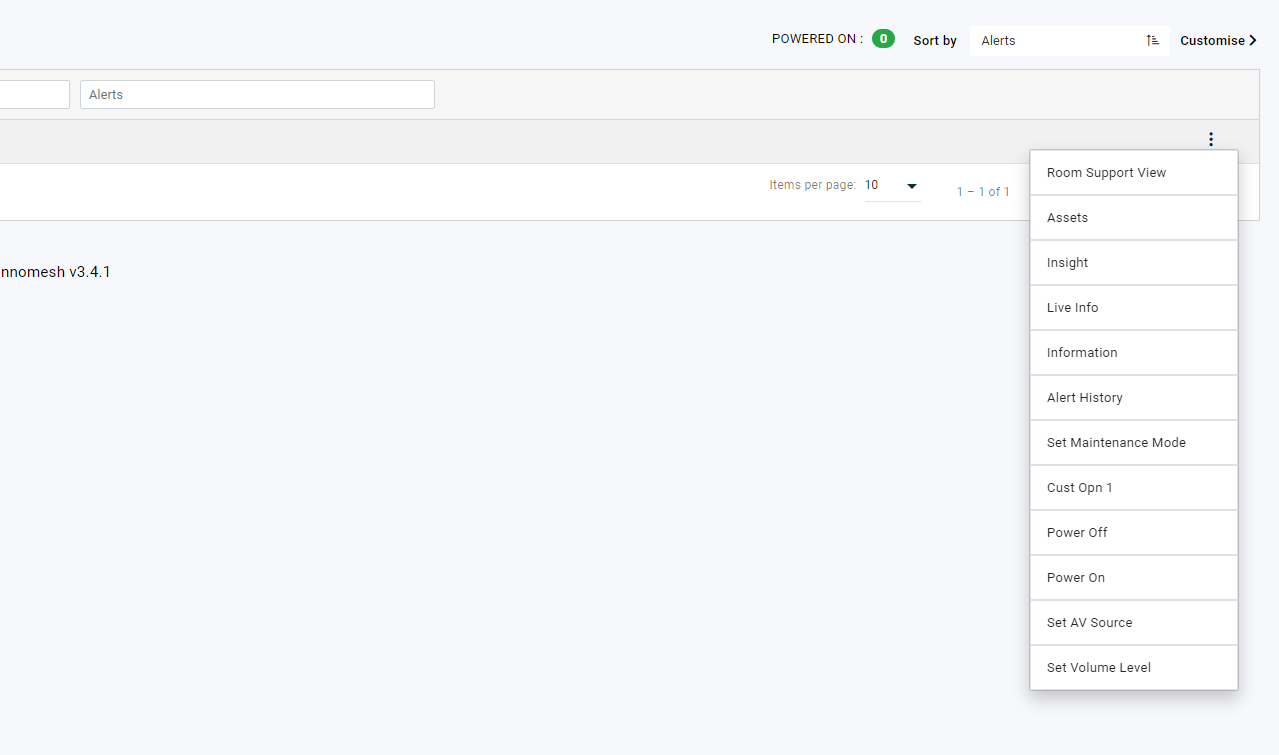

Portal room row context menu showing standard entries alongside configured room operations including Cust Opn 1, Power Off, Power On, Set AV Source, and Set Volume Level.

Key Takeaway

This feature enables centralised control by allowing administrators to bundle multiple device actions into single room level commands, simplifying operational workflows through the portal interface.
